proximal lateral tibia

The information presented is intended for use as a demonstration for products contract manufactured by Orthomedic. The appropriate treatment, technique(s) and product(s) for each individual patient are to be determined by the treating surgeon.

Providing optimal anatomic and rigid fixation of proximal tibia fractures.

Intended Use

4.5/5.0 MM LCP Proximal Lateral Tibia Plates are intended for the treatment of non-unions, malunions, tibial osteotomies and fractures of the proximal tibia including simple comminuted fractures, lateral wedge fractures and proximal fractures with associated shaft fractures.

Features and Benefits

4.5/5.0 MM LCP Proximal Lateral Tibia Plates are part of the Large Fragment LCP System. The locking plates are precontoured to replicate the patient’s anatomy and aid with anatomic restoration. Both plates and screws have been designed to specifically address each of the variable fracture patterns commonly seen in a manner optimizing internal fixation while providing appropriate rigidity to address comminution and bone loss

The plates are available in stainless steel and titanium, with 3, 5, 7, 9, 11, and 13 holes for left and right tibias.
proximal lateral tibia
1

K-Wire Holes

Allows primary or temporary plating for fracture fixation
2

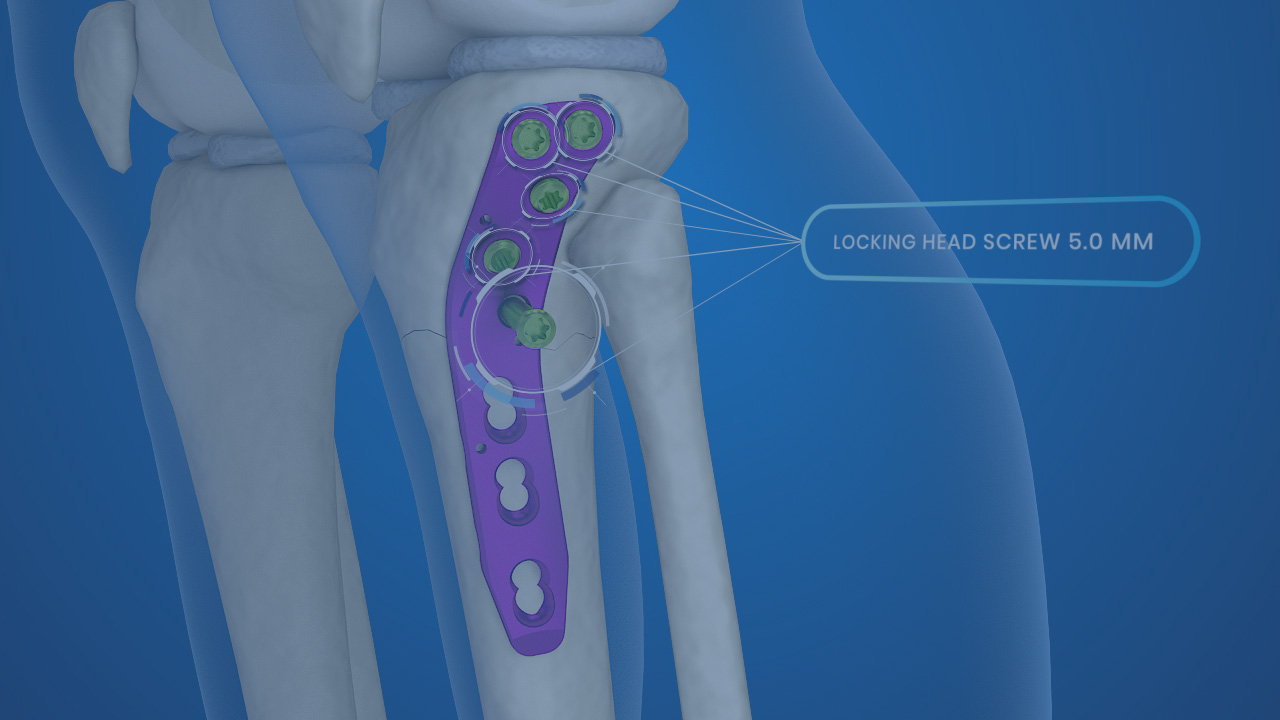

Locking Holes in Plate Head

The divergent threaded screw holes accept Locking Head Screw 5.0 mm and Cortex Screw 4.5 mm. Locking screws in the head area provide angular stability and secure support, leading to optimal reconstruction of the tibial plateau for restoration of full joint function.
3

Preshaped Plate

Low profile contouring of the plate approximates the lateral aspect of the proximal tibia for optimum bone conformance and helps minimize prominence and soft tissue irritation. Little or no bending required.
4

Rounded Plate Tip

Rounded and tapered plate tip permits a minimally invasive surgical technique and facilitates sliding of plates sub-muscularly.
5

Combi Hole

The Combi hole provides the flexibility of axial compression and locking capability throughout the length of the plate shaft by accommodating Locking Head Screw 5.0 mm or Cortex Screw 4.5 mm, or a combination of both, providing comprehensive selections for flexible intraoperative technique.
4.5/5.0 MM LCP Proximal Lateral Tibia Plate
proximal lateral tibia

SCREWS
Locking Head Screw 5.0 mm
Locking Head Screw 5.0 mm

Locking Head Screw 5.0mm, Self-Tapping, 14mm-90mm Length (2mm increments from Length 14mm onwards, 5 mm increment from Length 50 mm onwards)


Features

- Create a locked, fixed-angle screw/plate construct.
- Self-tapping tip.
- Threaded conical head.
- Fully-threaded shaft.

Cortex Screws 4.5 mm Self-tapping
Cortex Screws 4.5 mm Self-tapping

Cortex Screw, 4.5mm, Self-Tapping, 14mm-80mm Length (2mm increments)


Features

- Compress the plate to the bone or create axial compression.
- Self-tapping tip.
- May be used in the DCU portion of the Combi holes in the plate shaft.

Cortex Screws 4.5 mm
Cortex Screws 4.5 mm

Cortex Screw, 4.5mm, 14mm-80mm Length (2mm increments)


Features

- Compress the plate to the bone or create axial compression.
- May be used in the DCU portion of the Combi holes in the plate shaft.
